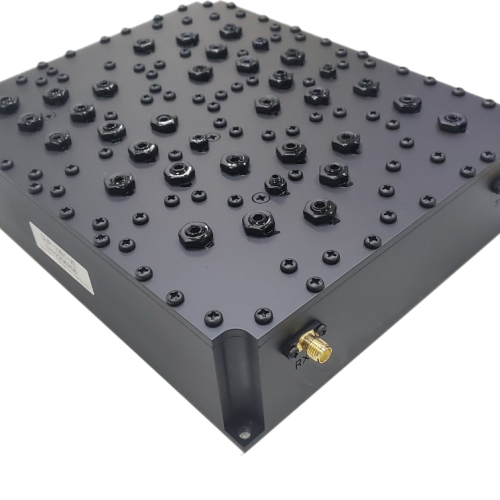

Single Band Duplexer 1800MHz Indoor

Single Band Duplexer 1800MHz Indoor

Model :  DUP-1093-VH

Feature

1800MHz duplexer is an antenna duplexer that separated TX and RX

Application

Cellular indoor network.

Amplifier

Repeater

Small Cell

Tài liệu

DUP-1093

Description

Port 1

Port 2

Frequency Band

1710-1785MHz

1805-1880MHz

Insertion Loss

≤ 0.7dB max

≤ 0.7dB max

V.S.W.R

≤ 1.3 max.

Isolation (Between port 1 and 2)

≥ 50dB min

Attenuation

50dB at 885 MHz

Impedance

50Ω

Average Maximum Power

CW 80W Max
